Structural & Non-Structural Plywood

Structural Plywood

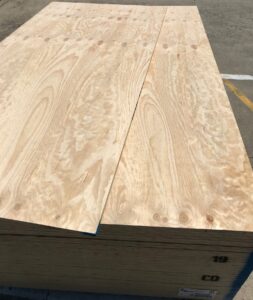

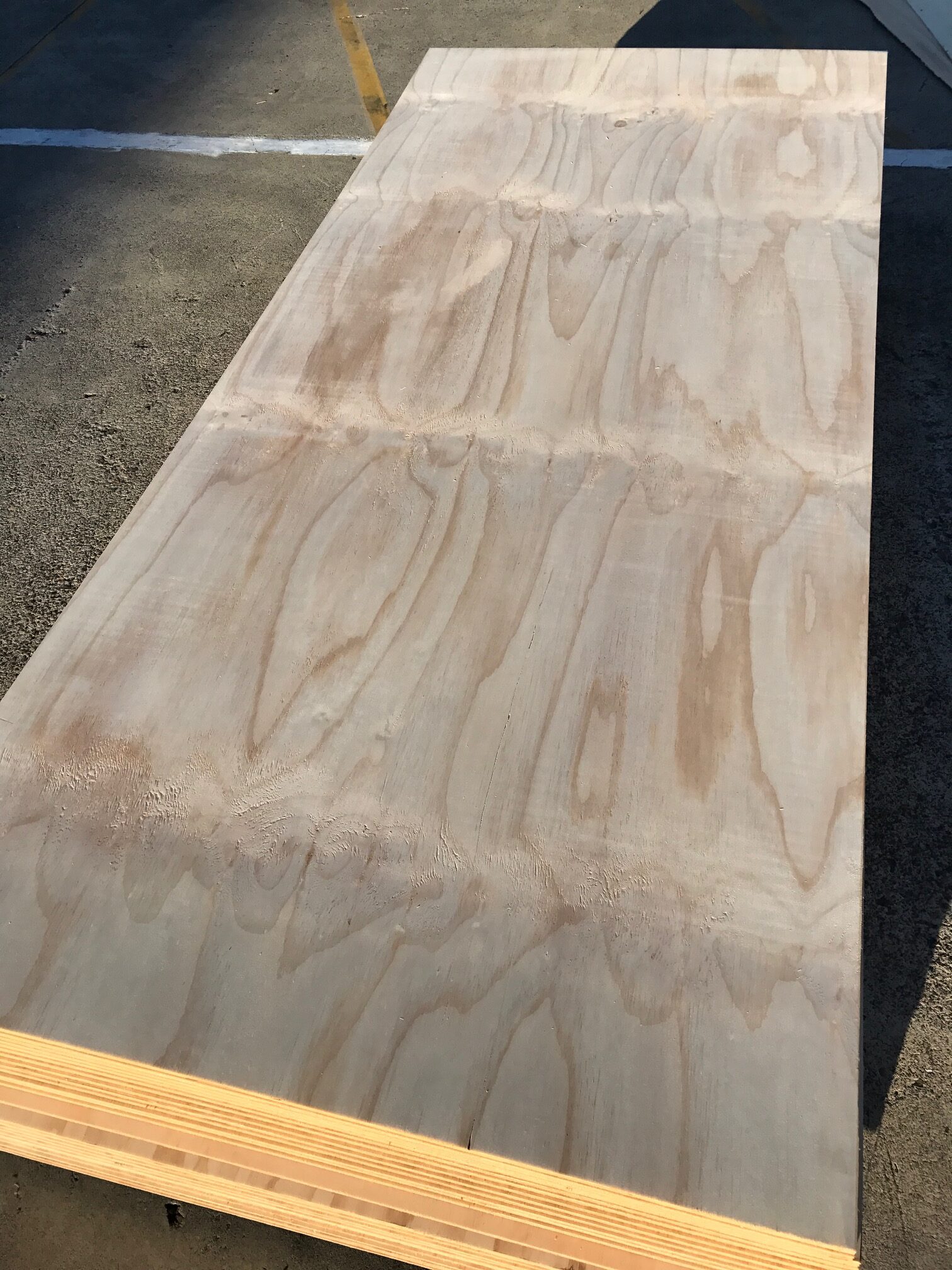

CD Structural – F11 ECOPly Pine A-Bond

ECOPly is fit for use in structural load bearing applications where the stress rating of the plywood meets the relevant building code requirement for that application. The manufacturer Carter Holt Harvey (CHH) is FSC Certified.

Specifications

Length x Width (mm)	Thickness (mm)	Sheet Weight (Kg's)	Image
Specification Sheet CD ECOPly
2400 x 1200	7*	10.6
2400 x 1200	9*	13.6
2400 x 1200	12	18.1
2400 x 1200	15	22.7
2400 x 1200	17	25.7
2400 x 1200	19	28.7
2400 x 1200	21	31.8
2400 x 1200	25	37.8
2700 x 1200	7*	11.9
2700 x 1200	9*	15.3
2700 x 1200	12	20.4
2700 x 1200	15	25.5
2700 x 1200	17	28.9
2700 x 1200	19	32.3
2700 x 1200	21	35.7
2700 x 1200	25	42.5
* F8

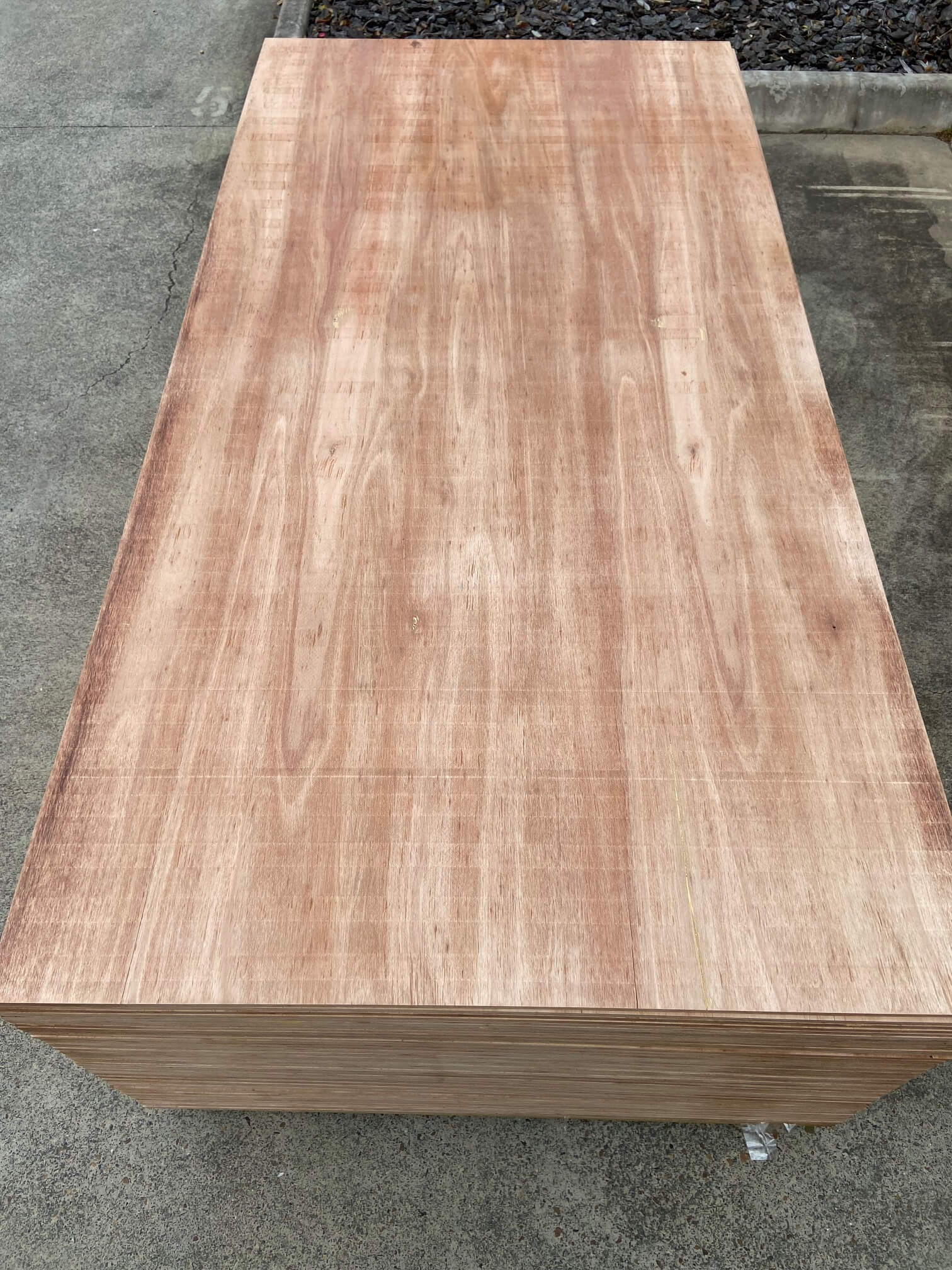

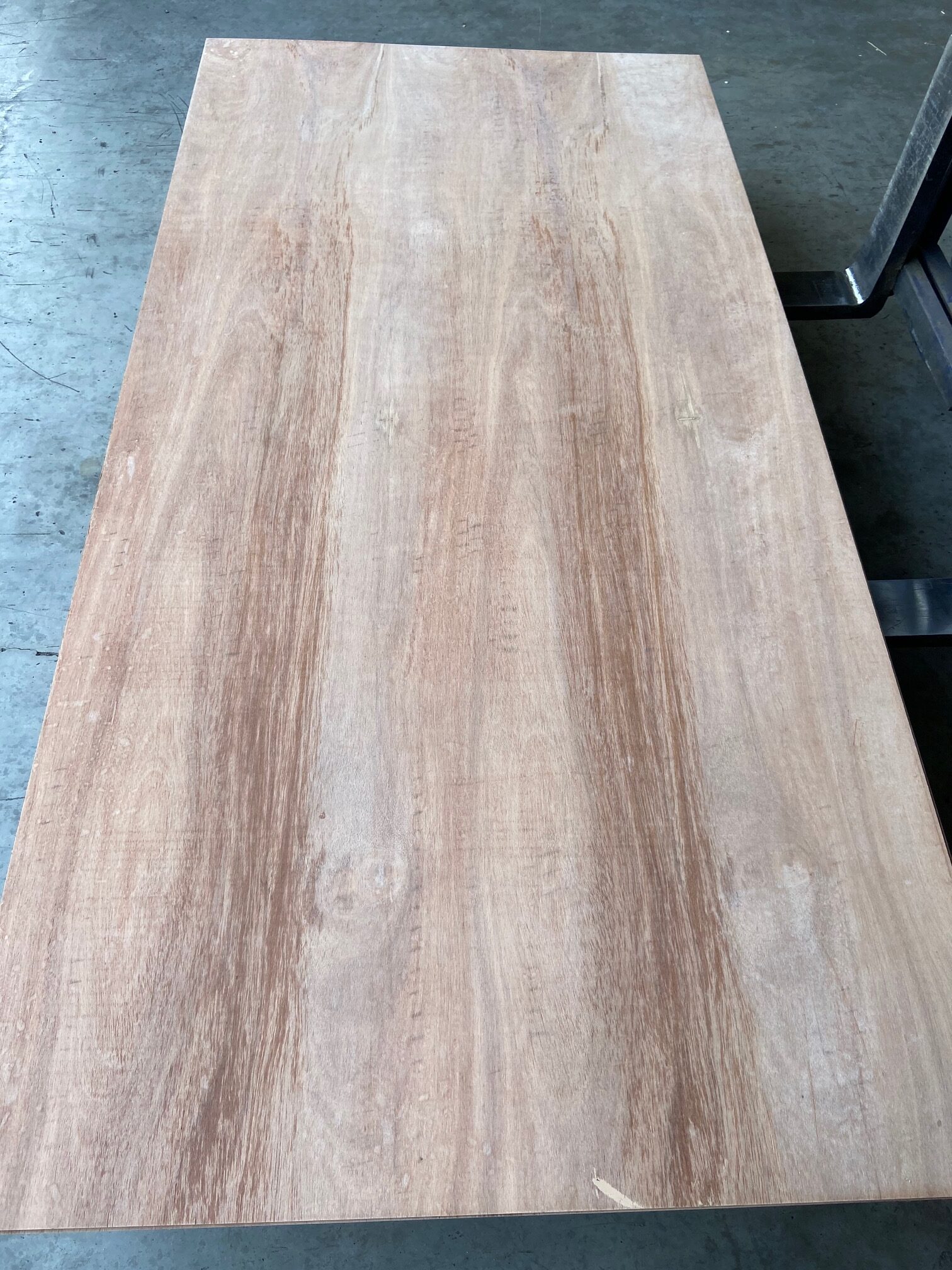

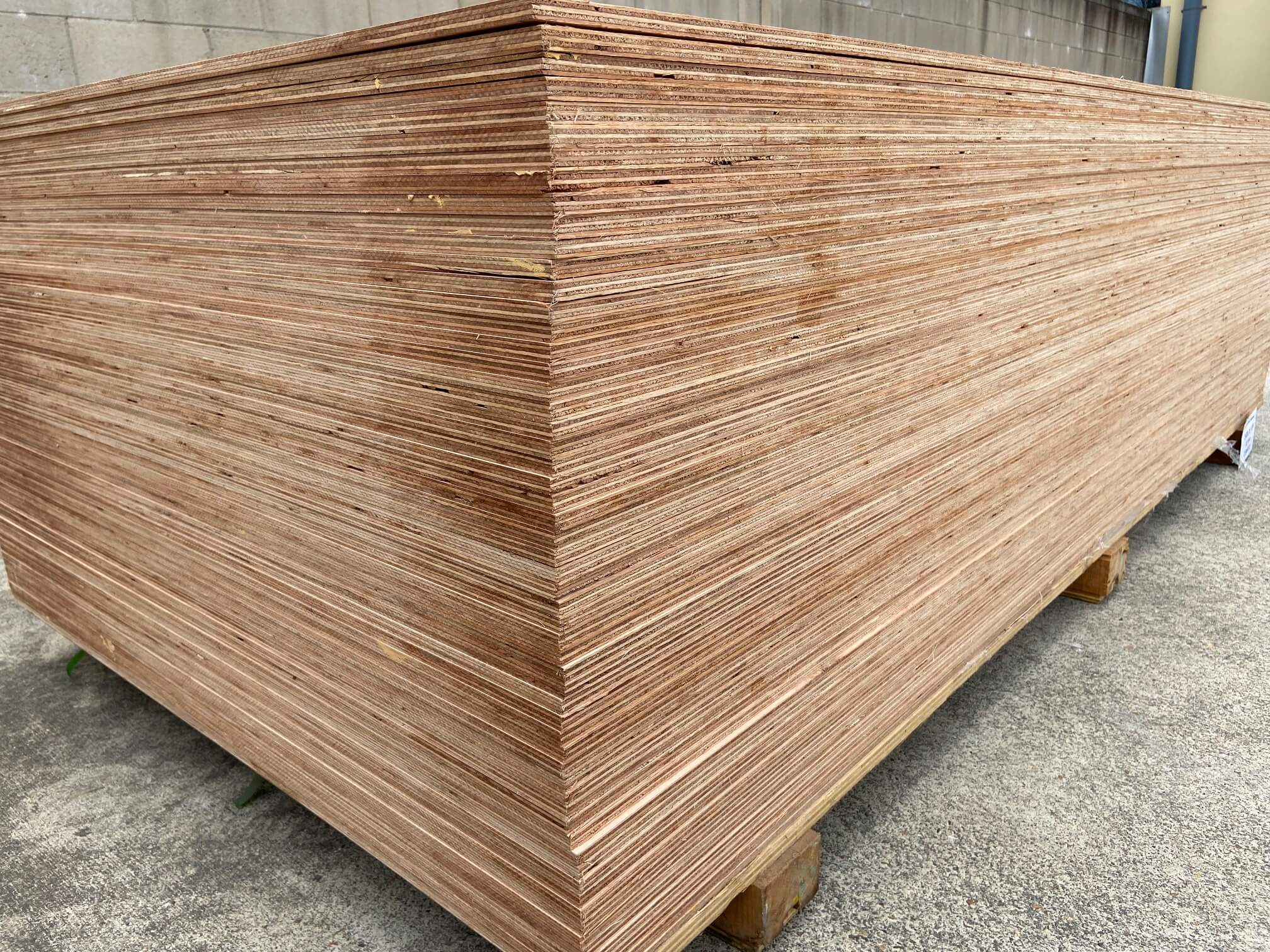

CD Structural – F17 H2 Hardwood A-Bond

Fit for use in structural load bearing applications where the stress rating of the plywood meets the relevant building code requirement for that application. This flat, sturdy and stable panel is thus suitable for tough working conditions requiring impervious durability and is BSI Certified.

Specifications

Length x Width (mm)	Thickness (mm)	Sheet Weights (Kg's)	Image
Specification Sheet CD Hardwood
2400 x 1200	9	17.5
2400 x 1200	12	23.2
2400 x 1200	15	29.2
2400 x 1200	17	33.0
2400 x 1200	19	36.9
2400 x 1200	21	40.8
2400 x 1200	25	48.6

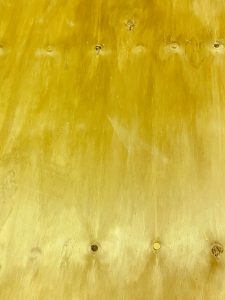

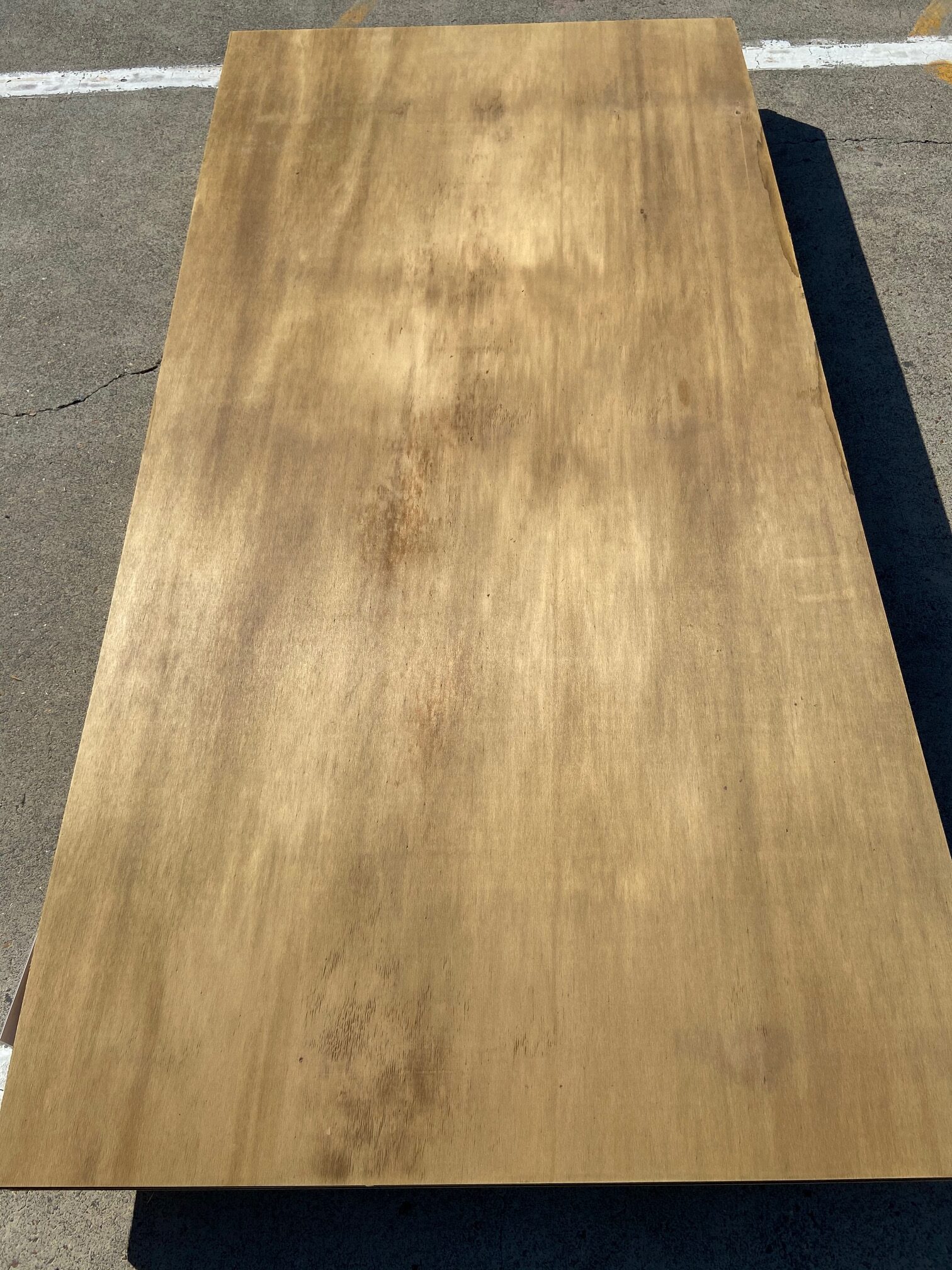

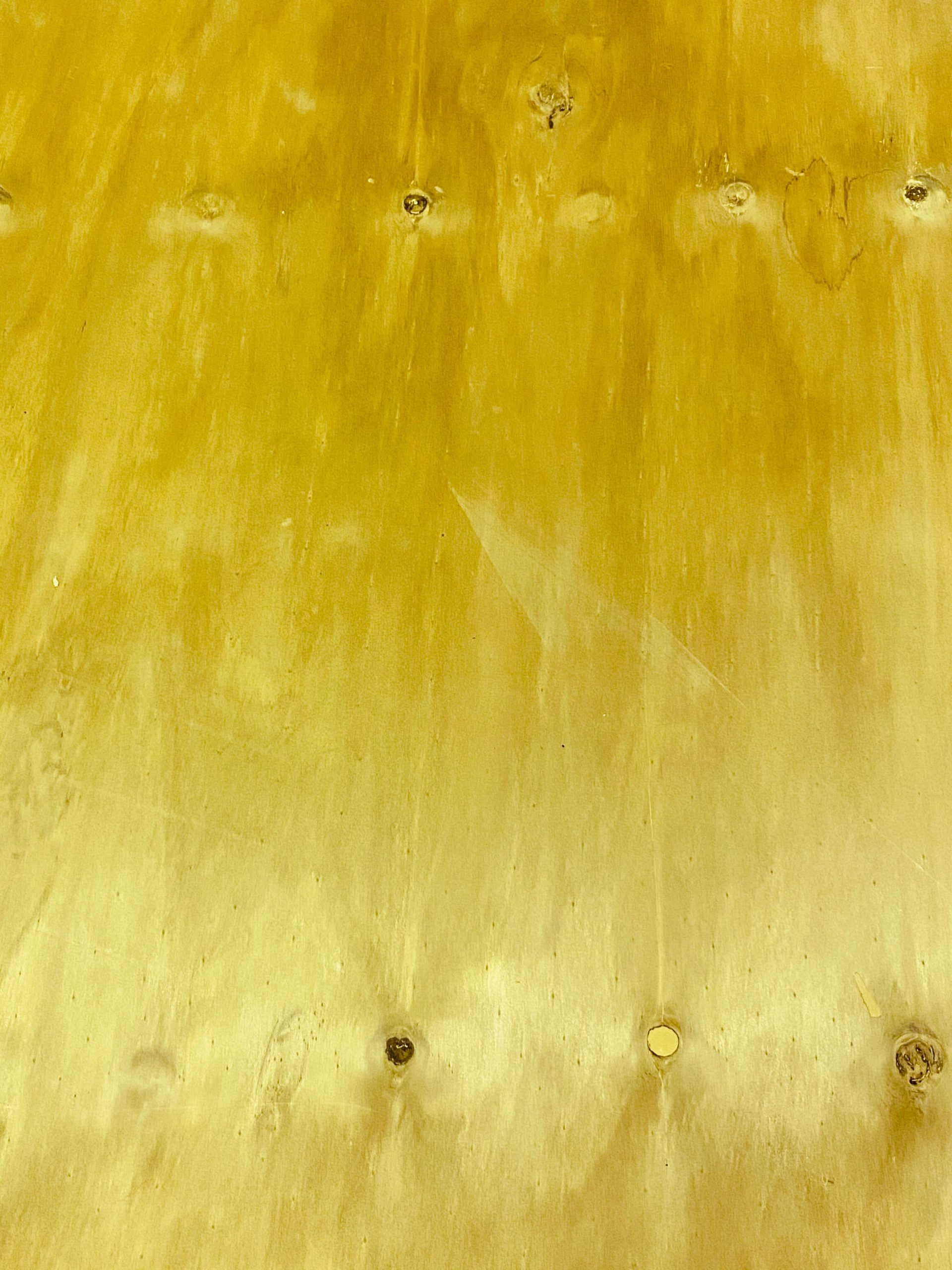

CD Structural – F14 H3 ACQ Pine A-Bond

Manufactured from responsibly harvested Pine, this total veneer preservation treated plywood is intended for use in exterior applications in harsh environments exposed to insect attack, periodic moderate wetting, leaching and the consequent rot & moderate decay. Ongoing maintenance and inspections will aid in ensuring that rot/infestation does not occur in above-ground applications.

Specifications

Length x Width (mm)	Thickness (mm)	Sheet Weight (Kg's)	Image
Specification Sheet CD ACQ H3
2400 x 1200	12	20.7
2400 x 1200	15	25.9
2400 x 1200	17	29.4
2400 x 1200	19	32.8

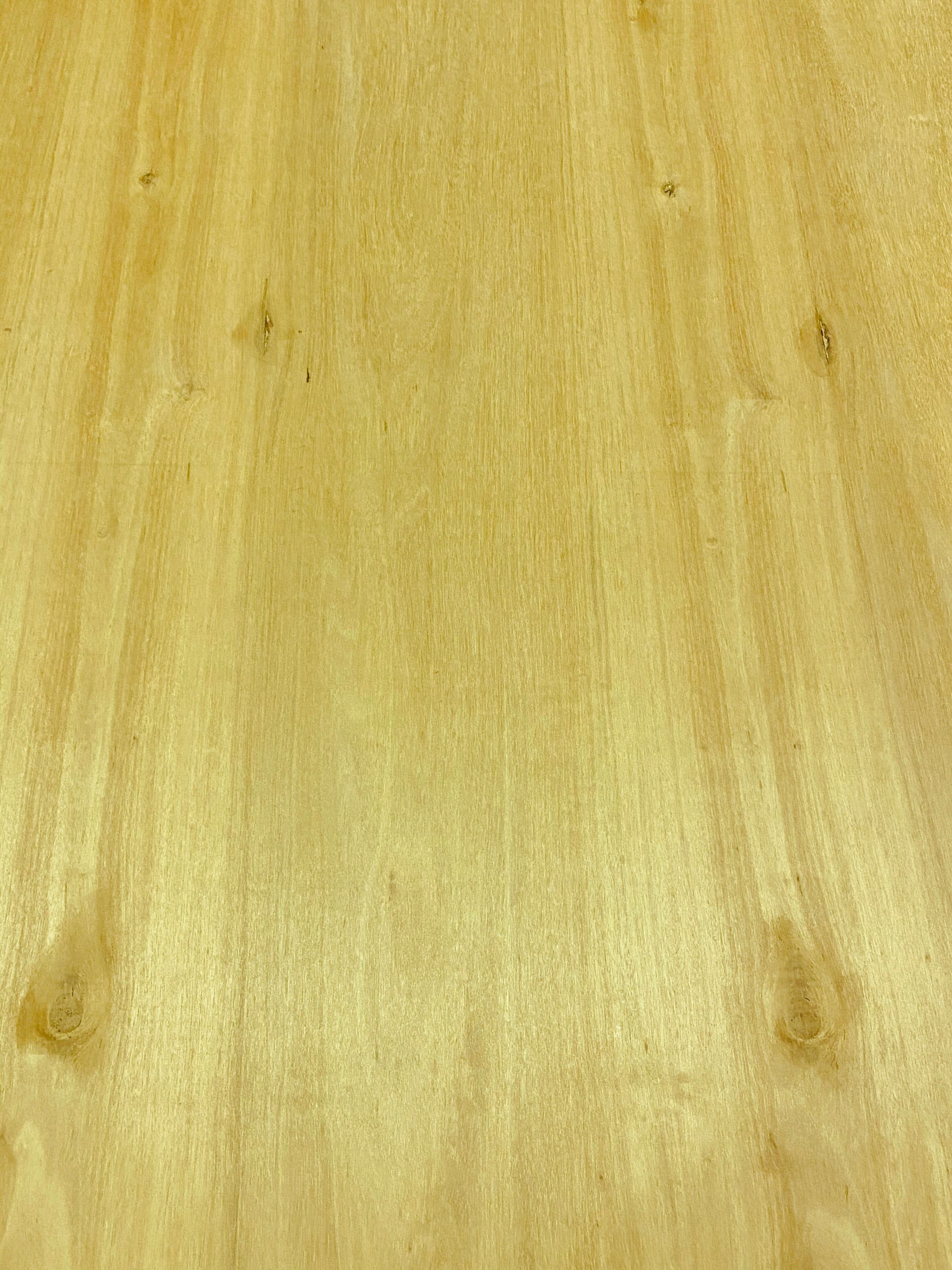

DD Structural Brace – F22 Hardwood A-Bond

Commonly known as Brace Ply, this versatile product is regularly used in structural bracing applications and the sheathing of frames providing additional strength to resist horizontal racking forces such as high winds & the creation of a barrier to reduce air and moisture ingress.

Specifications

Length x Width (mm)	Thickness (mm)	Sheet Weight (Kg's)	Image
Specification Sheet Brace Ply
2440 x 1220	4	8.5
2440 x 900	4	6.4
2745 x 1200	4	9.6
2745 x 900	4	7.2
3050 x 1200	4	10.6
3050 x 900	4	8.0

For more information on Plywood Specifications

Non-Structural Plywood

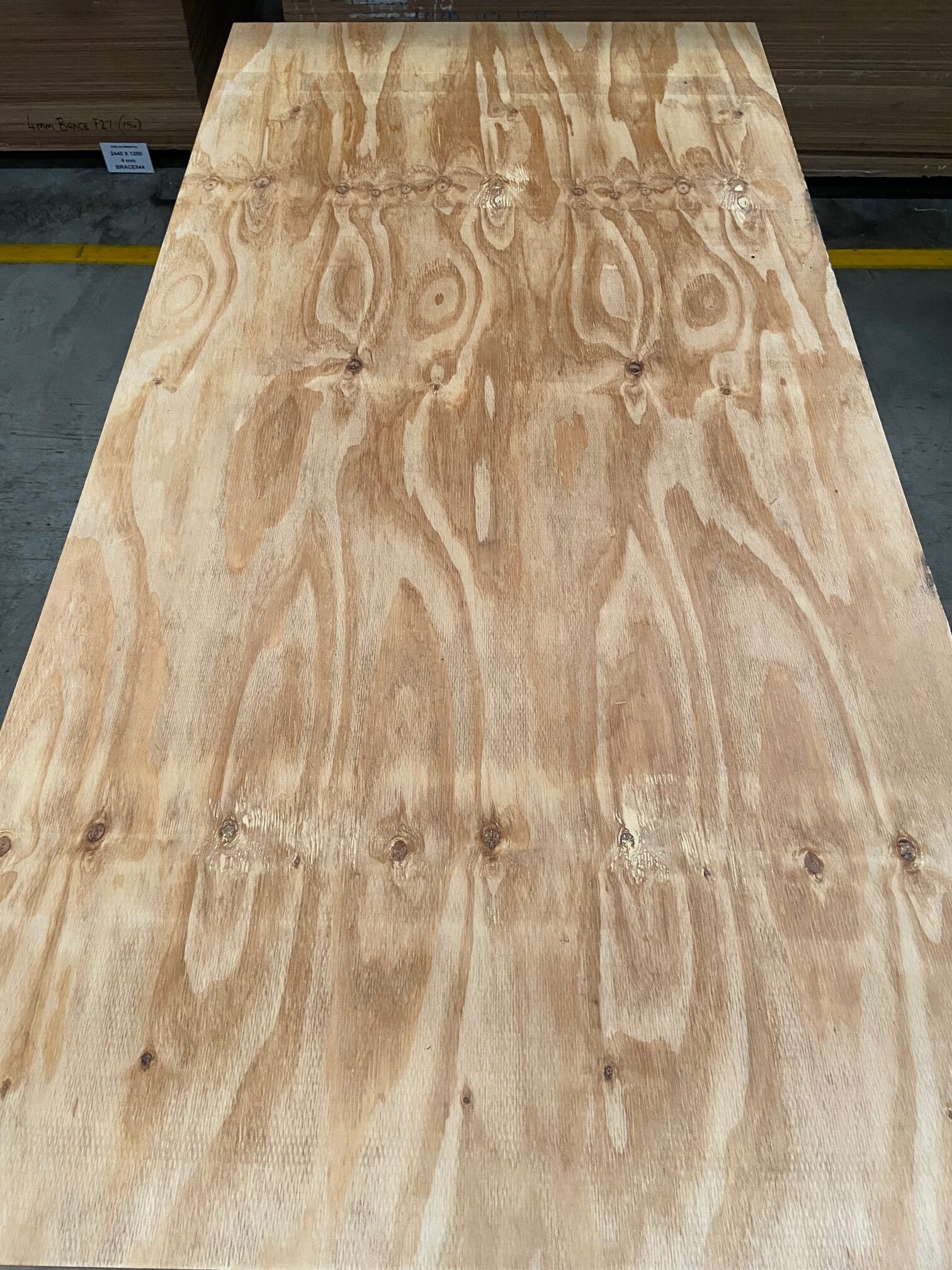

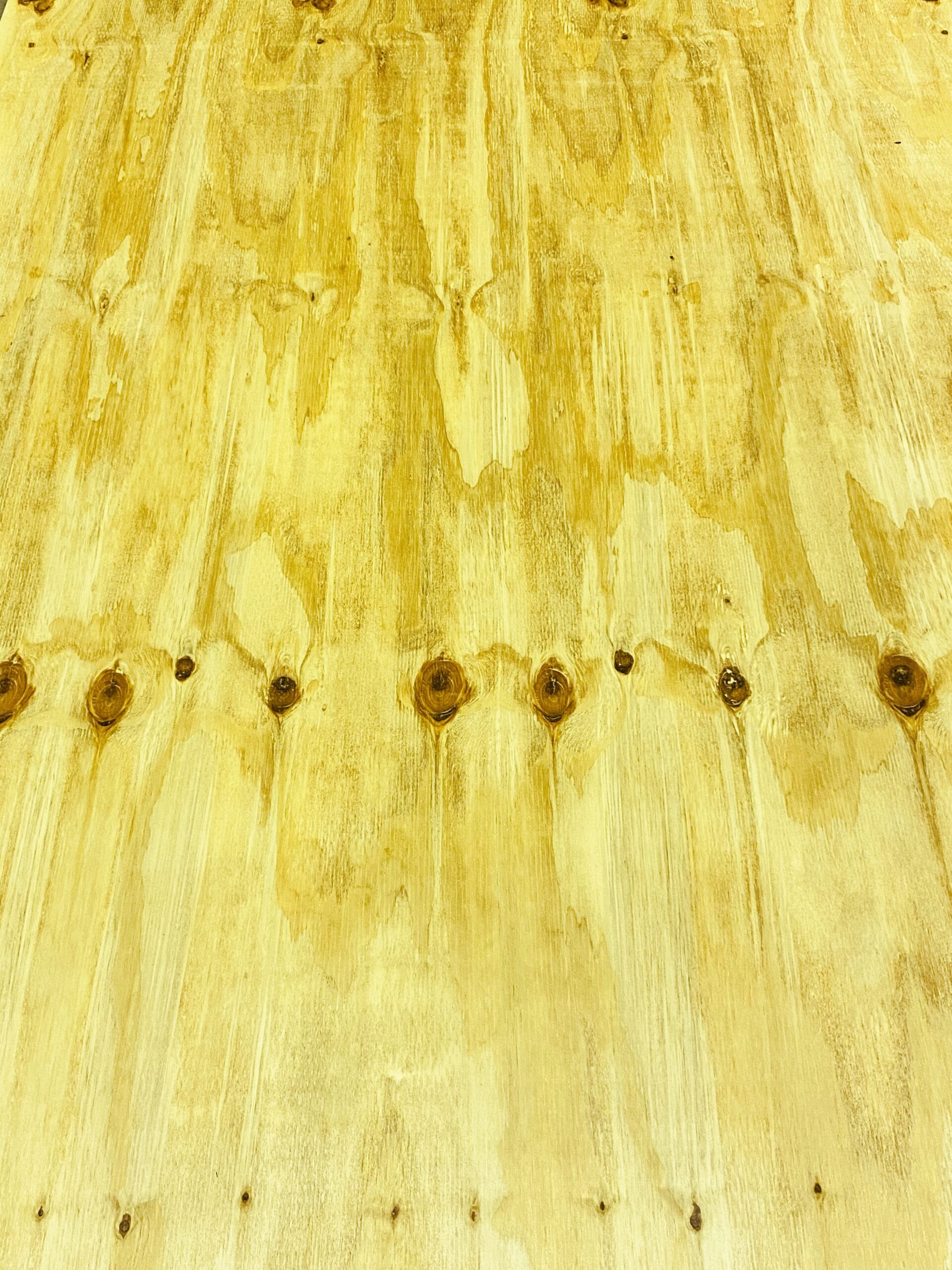

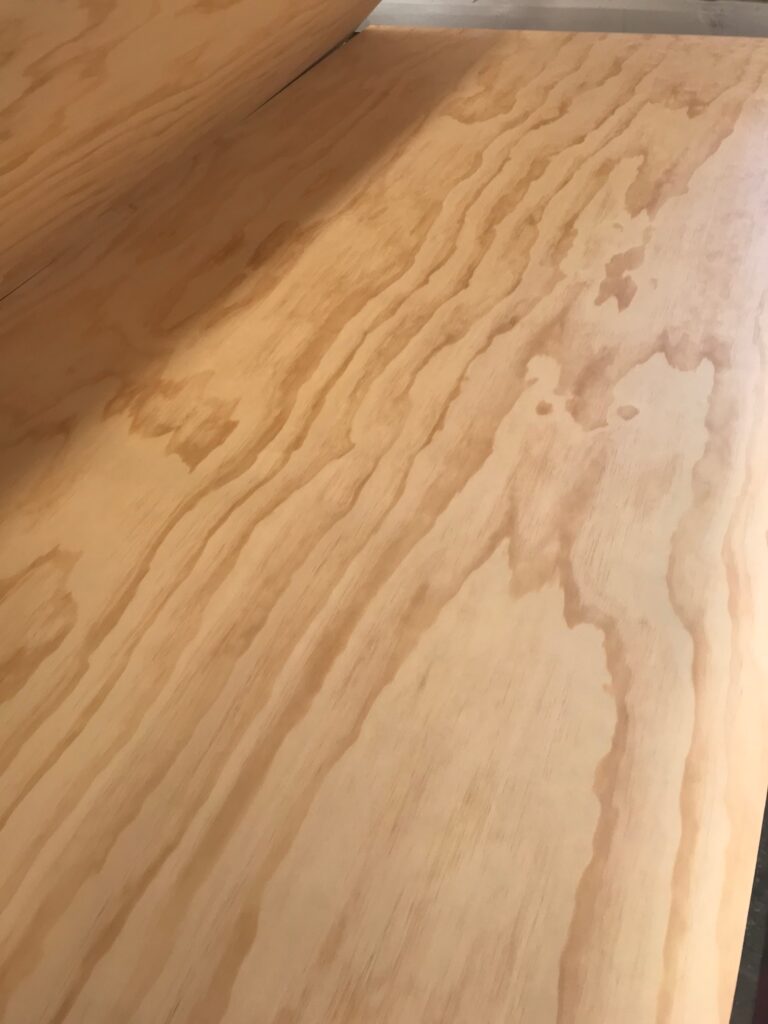

CD Non-Structural Imported – Pine

A versatile product used in many applications and industries where a structural rating is not required. Accordingly, this product can be used in both internal and external applications.

Specifications

Length x Width (mm)	Thickness (mm)	Sheet Weight (Kg's)	Image
Specification Sheet CD Non-Structural
2400 x 1200	5 *	7.6
2400 x 1200	7	10.6
2400 x 1200	9	13.6
2400 x 1200	12	18.1
2400 x 1200	15	22.7
2400 x 1200	17	25.7
2400 x 1200	18	27.2
2400 x 1200	19	28.7
2400 x 1200	25	37.8
* 5mm is D/D

For more information on Plywood Specifications

FAQ

What is the difference between Structural & Non-Structural?

Structural meets the requirements of AS/NZS 2269 and has a higher breaking strength in comparison to the equivalent plywood in the Non-Structural option. For example, there can be less core gaps, joins & overlays in Structural in comparison to the Non-Structural.

Is ECOPly Green Star certified?

Yes, ECOPly is certified by the FSC forest certification scheme, therefore making it Green Star suitable.

What thickness is suitable for garage/ shed wall linings?

12mm is common for these applications.

Gallery

The product images are intended to illustrate an average representation of the product.
