Other Plywood
The range of other plywood sheets includes:
Bendy Plywood Sheets
Polyester Plywood
Cladding – Shadowclad
Birch Plywood

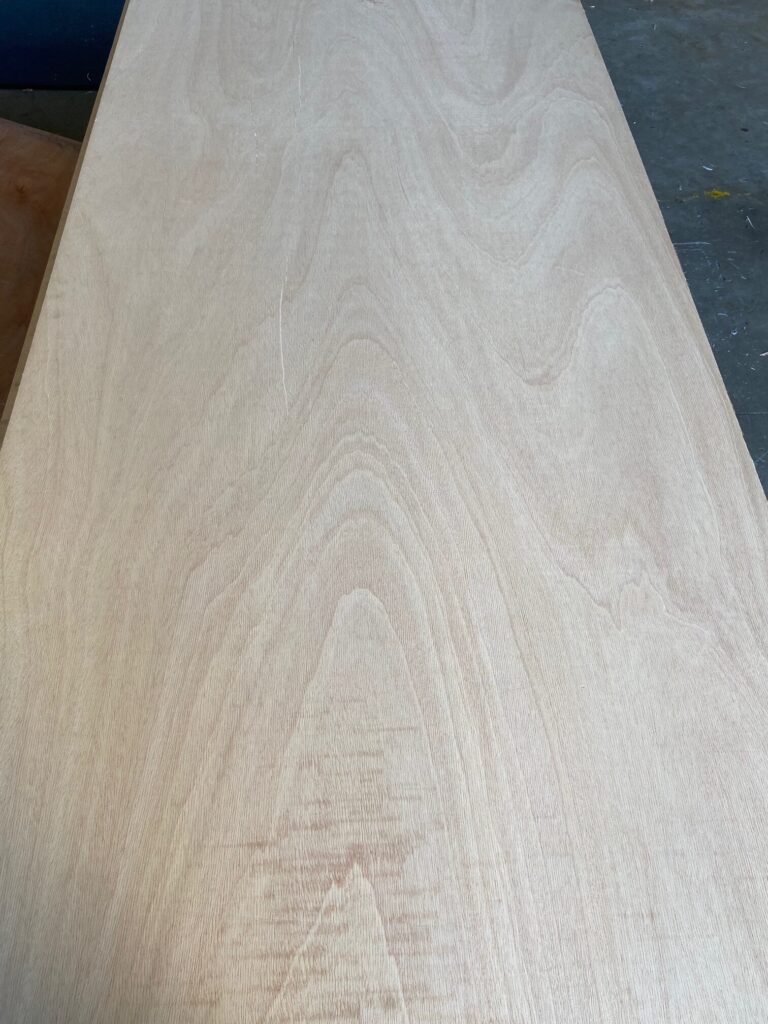

Bendy Plywood Sheets
Bendy ply is an interior grade non-structural plywood that has the ability to bend and curve around a very tight radius. Leading to its use in a wide range of applications due to its versatility. It is available in plywood sheets that bend in either direction, across the width of the sheet (Short Grain) or along the length of the sheet (Long Grain).
Recommended for applications where a high class paint finish is not required, or where the plywood is to be covered. Bendy ply is widely used in applications such as feature displays, general shopfitting, counters and furniture.
Specifications
Veneer Grades:
“B” grade face (5mm)
“C” grade face (7mm)
“D” grade back
Dimensions:
2440mm x 1220mm
Long Grain
Bends along the length of the sheet
1220mm x 2440mm
Short Grain
Bends along the width of the sheet
Thicknesses & Emissions:
5mm & E0
7mm & E0
For more information on Plywood Specifications
Polyester Plywood
Polyester Plywood is most regularly used in interior applications for walls and ceilings in caravans, trailers and horse floats with its light weight and quality finish.
We offer a comprehensive range of colours and finishes.
Specifications
Dimensions:
2440mm x 1220mm
Thicknesses:
3.6mm (Nominal)

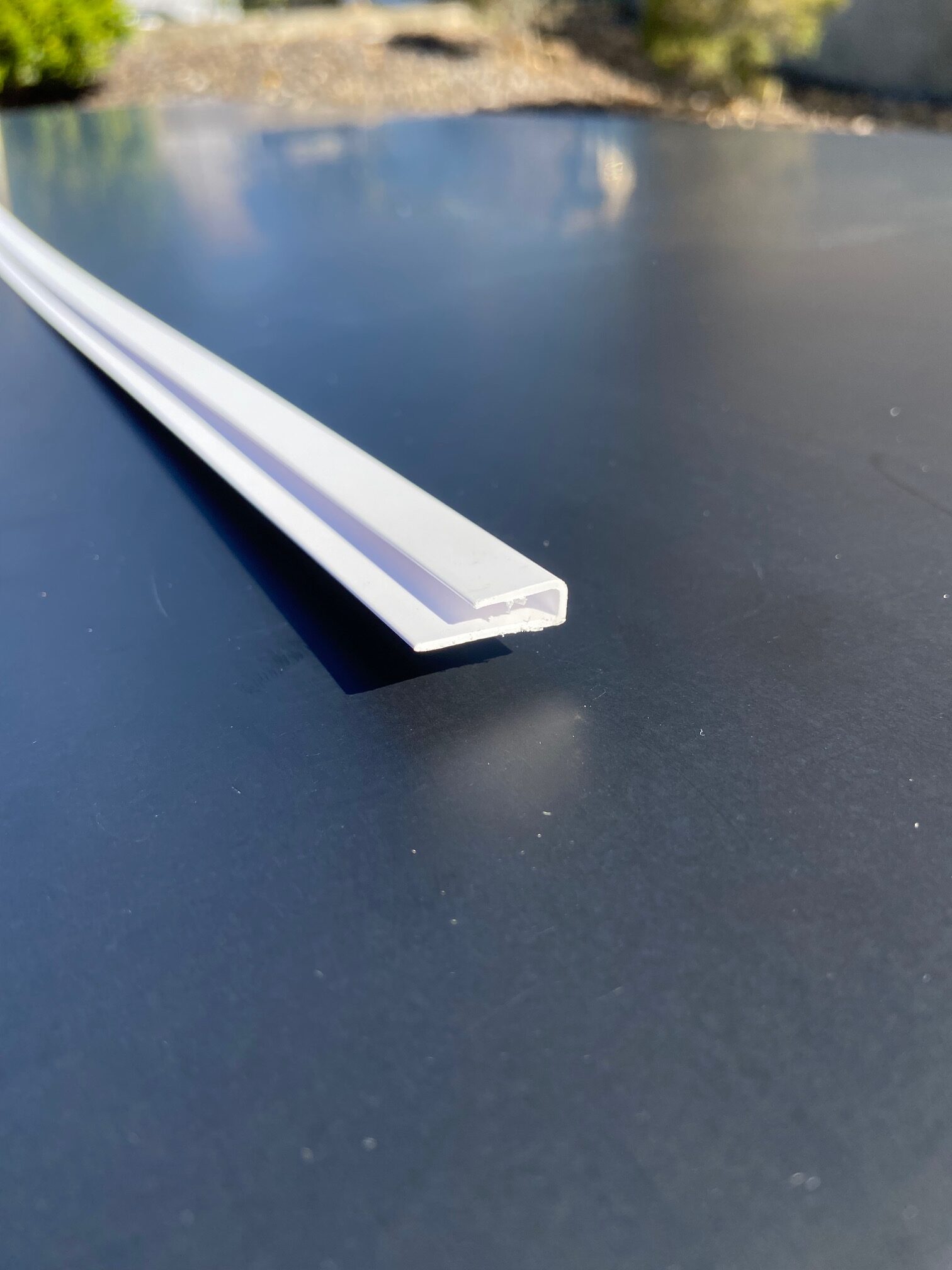

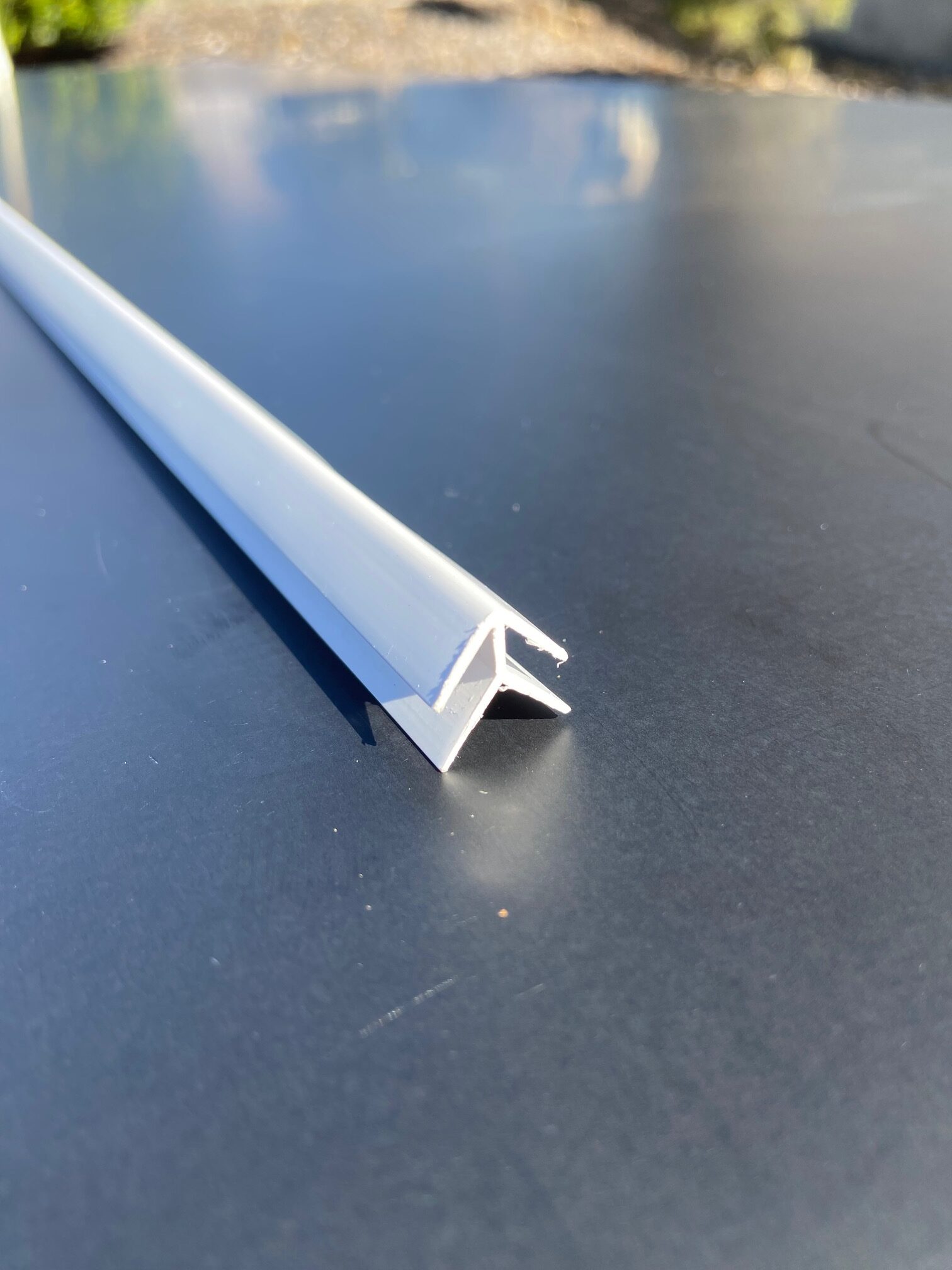

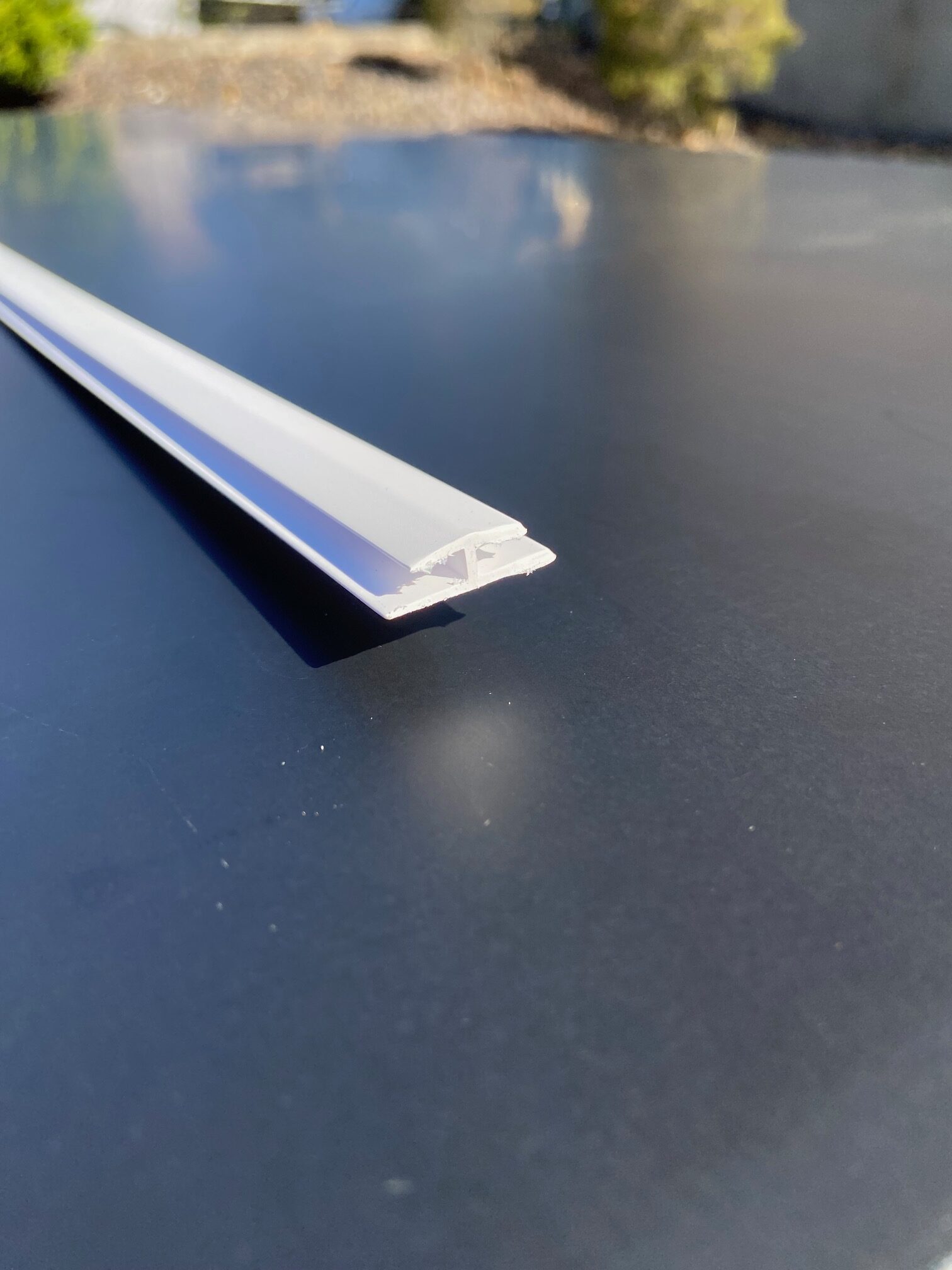

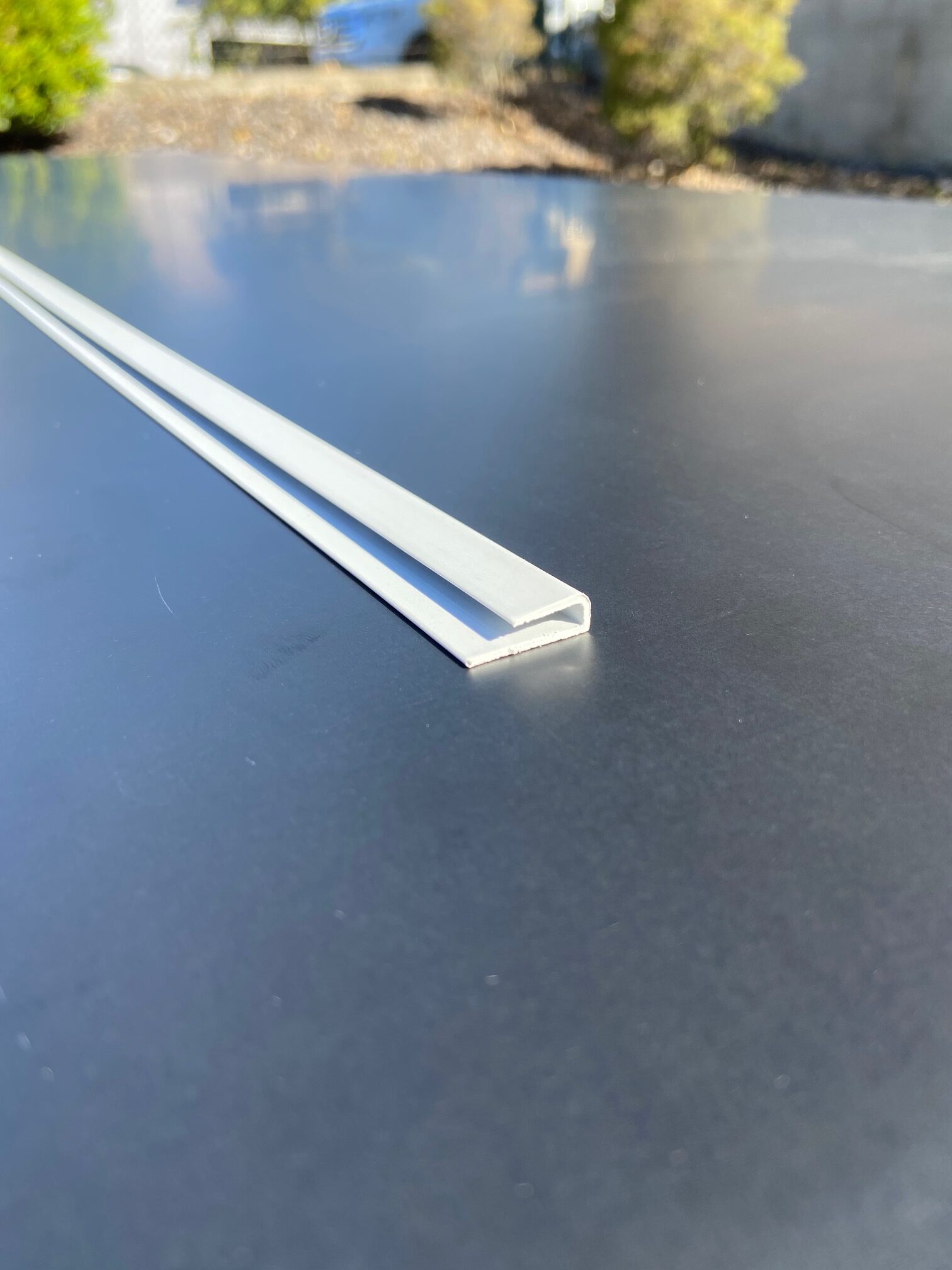

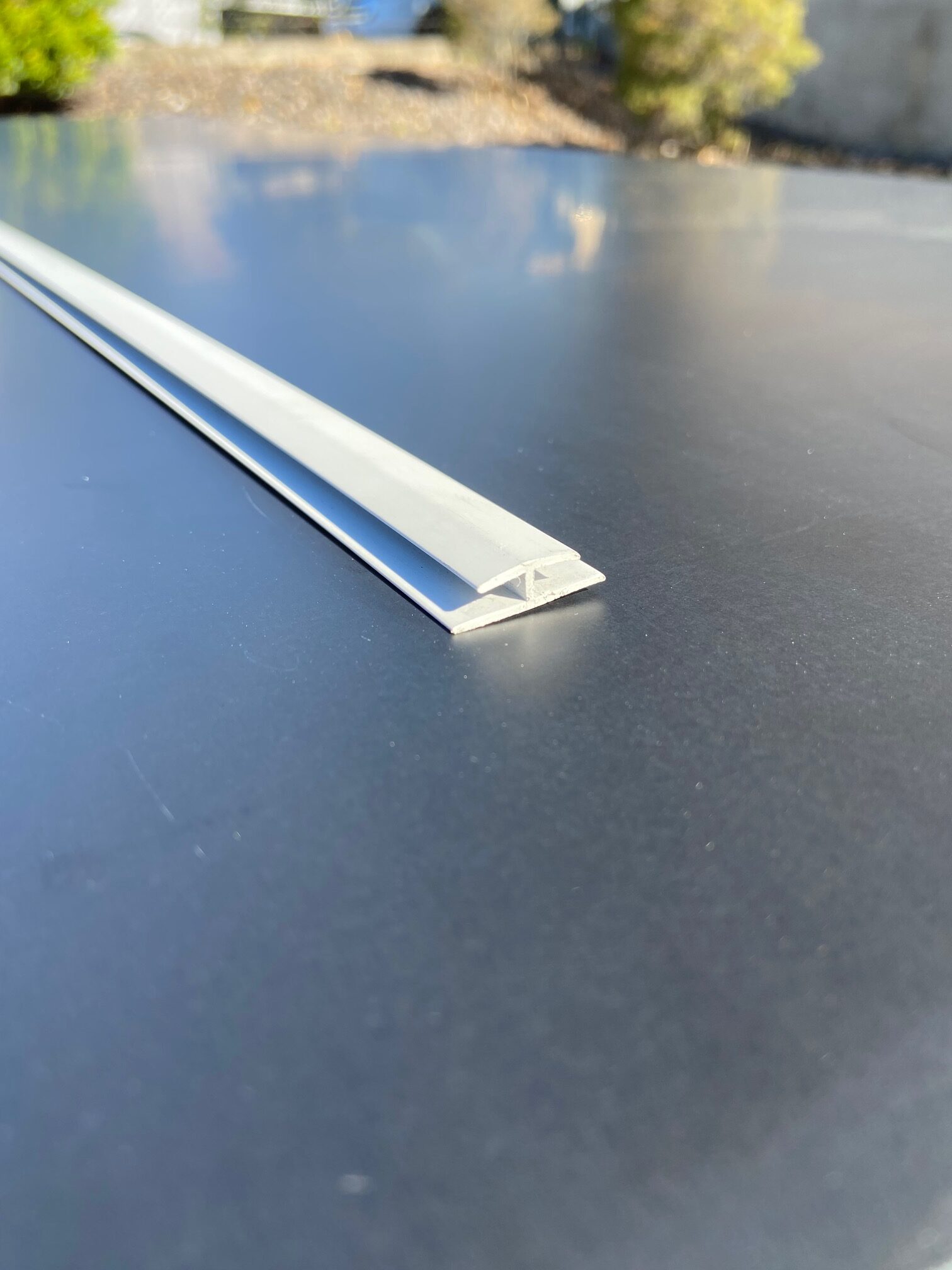

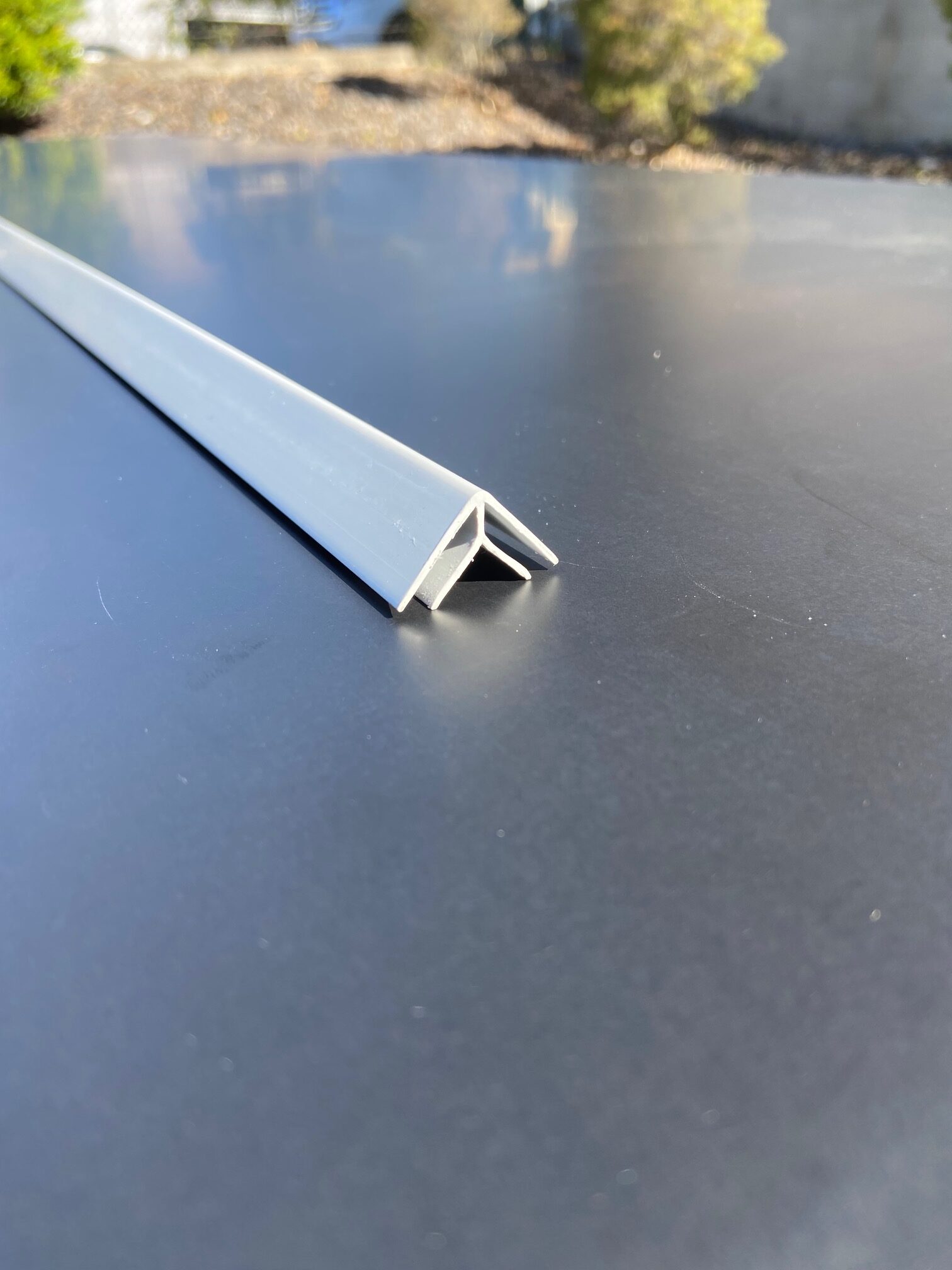

Colours & finishes:
Poly White Gloss
Poly White Matt

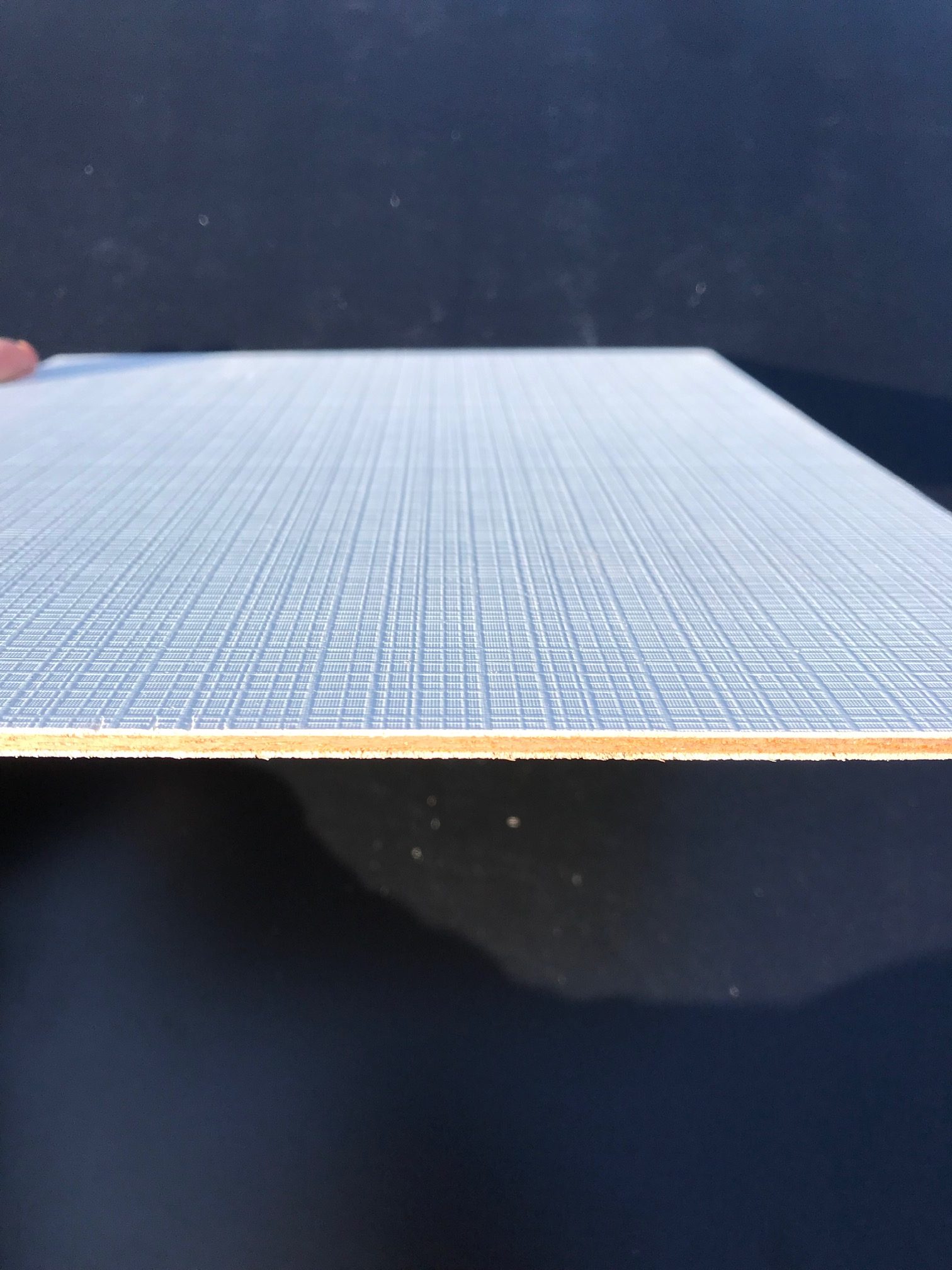

Poly White Embossed

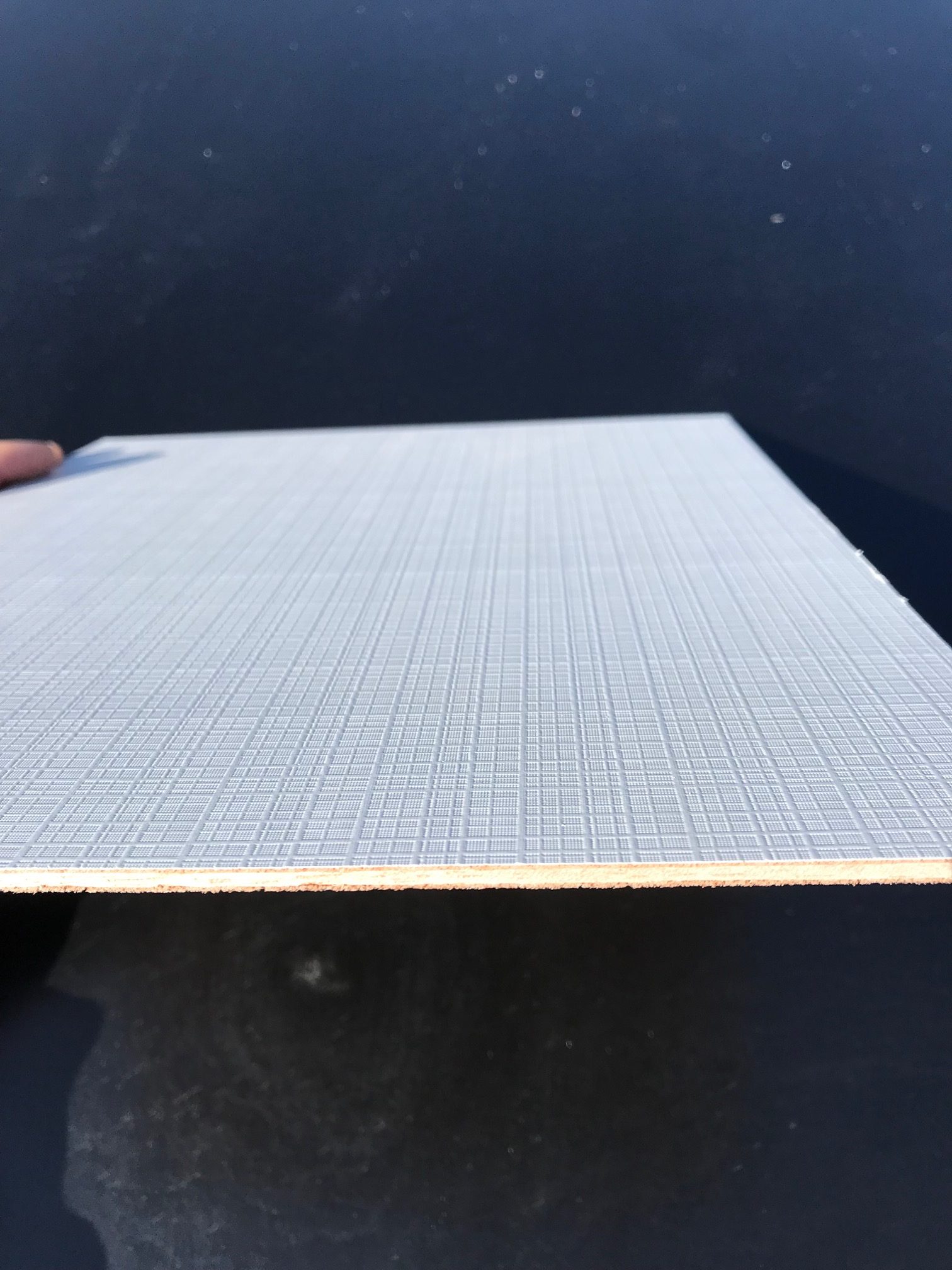

Poly Grey Embossed
- Polyester White Gloss (Face)
- Polyester White Embossed Face (Face)
- Polyester Grey Embossed (Face)
- Polyester White Gloss (Edge)
- Polyester White Embossed (Edge)
- Polyester Grey Embossed (Edge)
For more information on Plywood Specifications
Cladding – Shadowclad

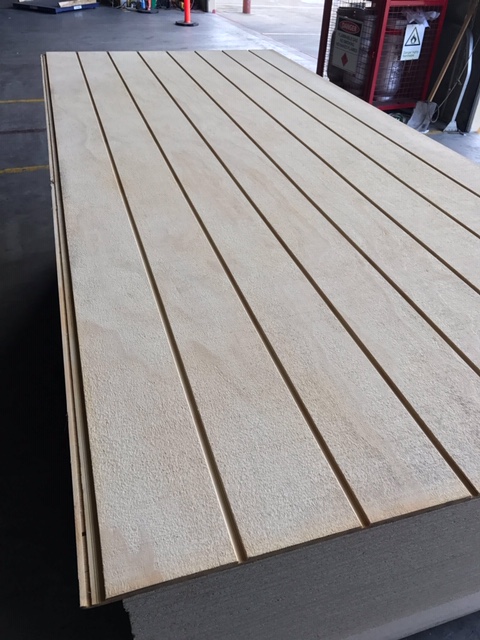

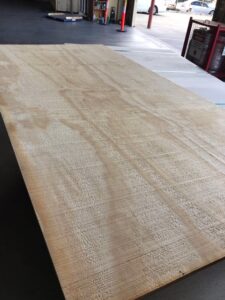

SHADOWclad, a product of Carter Holt Harvey, is a 12mm thick wall cladding available in sheets 1216mm wide and lengths of 2440 or 2745mm and a shiplap weather groove joint on the long edge of each sheet. The surface has a rough band sawn texture and is available with or without vertical grooves at 150mm centres.
SHADOWclad is available in a proprietary pre-primed, powder coated finish for painting or in an un-primed natural surface for staining. The aesthetic properties of this cladding make it suitable for both exterior and interior applications.
SHADOWclad is treated to H3 with a clear, non corrosive Light Organic Solvent Preservative (LOSP). This treatment protects the surface against rot and insect infestation. It can also be used for structural bracing when fixed directly to framing. SHADOWclad is manufactured from legally harvested plantation grown Radiata pine (FSC).
Applications
Residential
Commercial
Industrial
Specifications
Profile:
Texture
Texture Groove
Edge Profile:
Shiplap with weather groove
Stress Grade:
AS/NZS 2269 Plywood Structural
Dimensions:
2440mm x 1216mm
2745mm x 1216mm
Thicknesses:
12mm
Glue Bond:
A-Bond Phenolic – 72 hour boil.
Species:
Plantation Pine
Preservative Treatment:
H3 LOSP
Emissions:
E0
Downloads:
Shadowclad Look Book
Shadowclad Direct Fix Specification & Installation Guide
Shadowclad Cavity Fix Specification & Installation Guide
For more information on Plywood Specifications

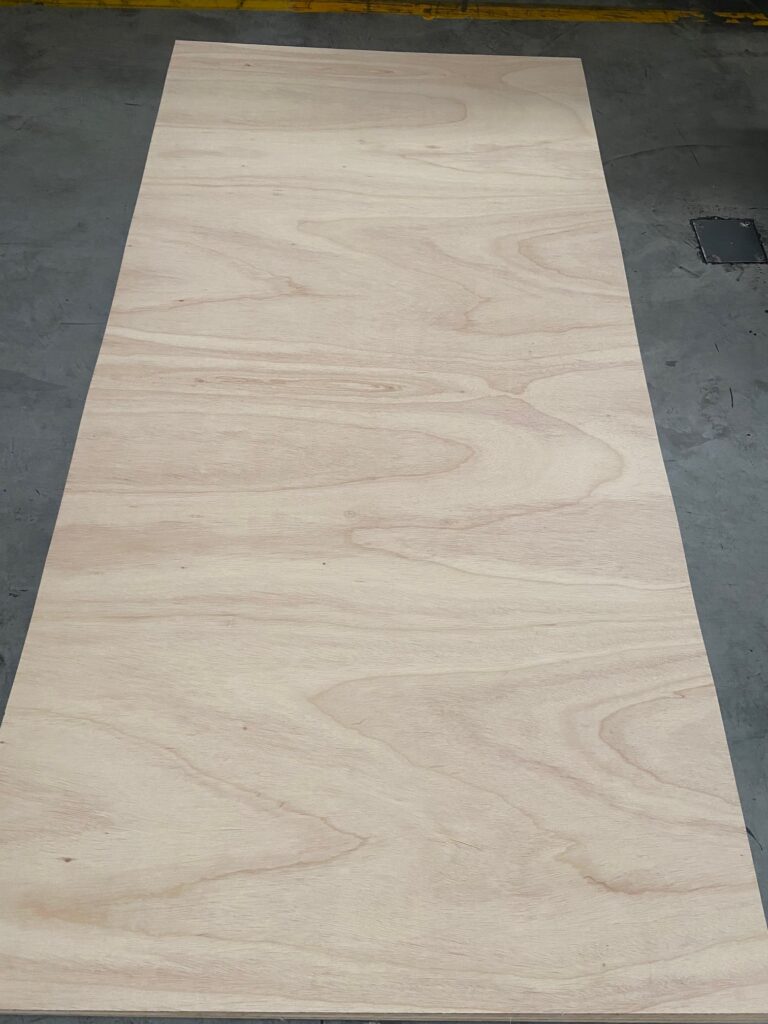

Birch Plywood
Birch plywood can be used in applications requiring a high-grade appearance and/ or good strength properties being a light colour specie. This plywood is mainly used in internal wall & ceiling linings, joinery, shipbuilding, vehicle floors and furniture.
The B/BB is suitable for use where a sound surface appearance is required. It has a light, even and smooth surface as is selected for applications in which excellent strength quality is essential.

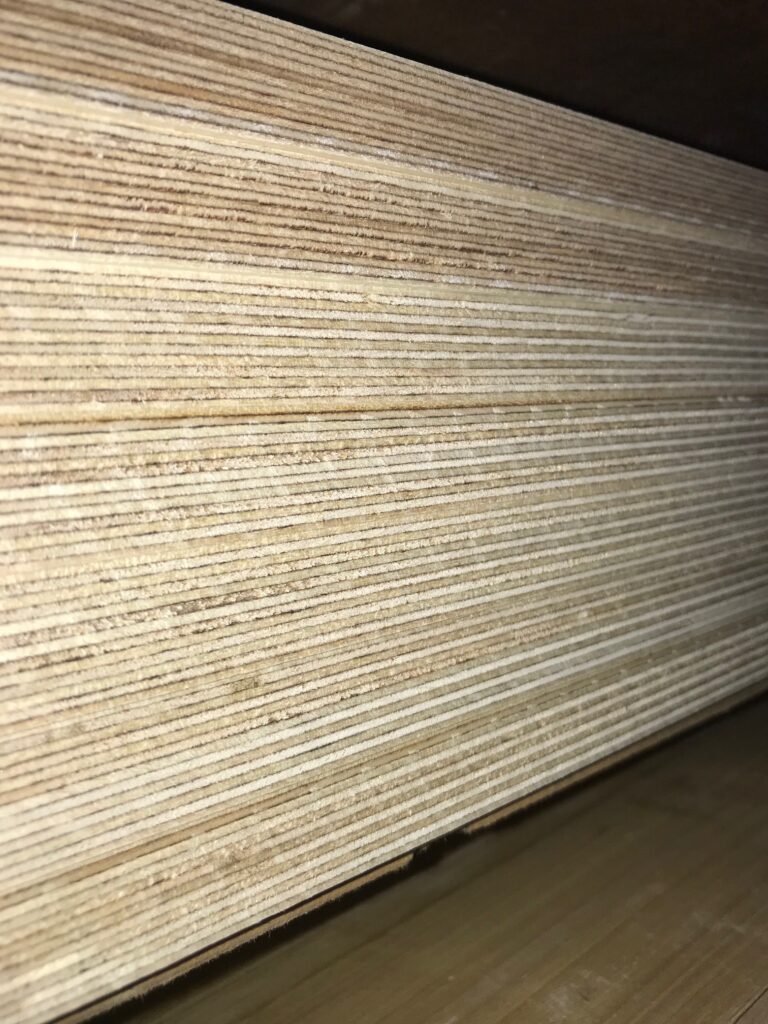

The multiply construction containing 1.4mm veneers results in minimal core voids. Ensuring the cut sheet maintains its aesthetic edge appearance.
Specifications
Veneer Grades & Dimensions:
B/BB
2440mm x 1220mm (Long Grain)
One clear face and the other face allows for butterfly patches
S/BB
1525mm x 3050mm (Cross Grain)
One clear face allowing for colour variation and the other face allows for butterfly patches
Thicknesses:
4mm, 6.5, 9, 12, 15, 18, 24, 30, 40mm
Glue Bond:
Cross-bonded weather resistant phenolic resin
Emissions:
E0
For more information on Plywood Specifications
